VPN client configuration – Apple iPhone
Examples of VPN connection configuration for Apple iPhone
We suggest using the L2TP/IPsec protocol for the best performance
Go to the "Settings"
Click on "General and VPN"
and next, click "Add VPN Configuration..."
Choose Type

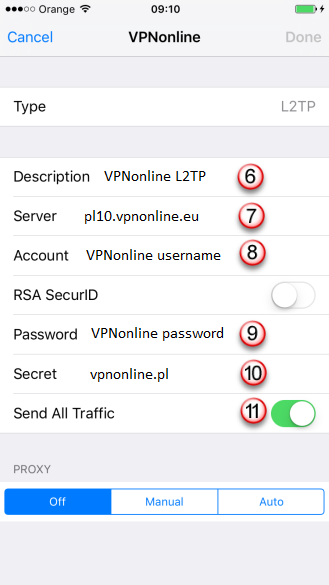

Select "L2TP" connection and fill in the fields below
"Description" - Type, connection name. For example: VPNonline PPTP
"Server" - Type the name of one of our VPN server
In the customer panel you will find the available vpn servers: https://portal.vpnonline.pl
"Account" - Type your VPN User
"Password" - Type your VPN Password
"Secret" - Type: vpnonline.pl
Select an option "Send All Traffic"
Save the settings by clicking on the "Save"
To establish VPN connection, click on "Connect button
After a successful established connection, the status will change to "Connected"
PPTP client configuration is no longer available on Apple devices with the new iOS.
Please configure your VPN connection using L2TP.

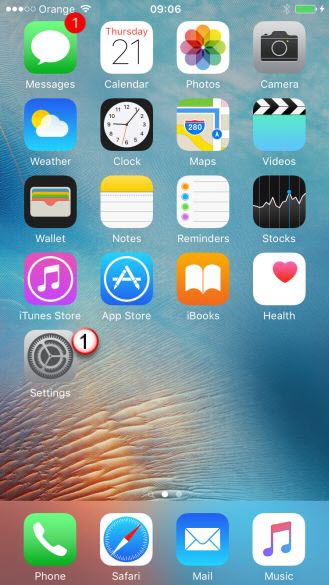

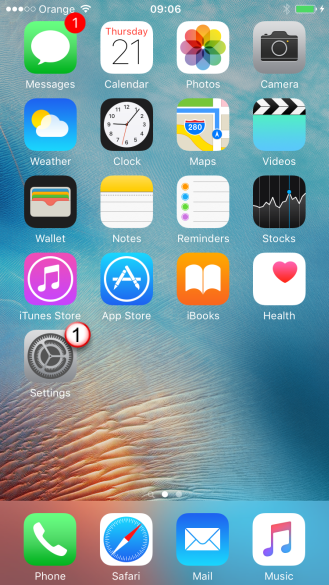

Go to the "Settings" (1)

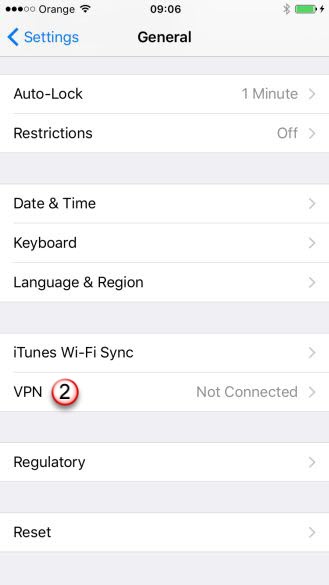

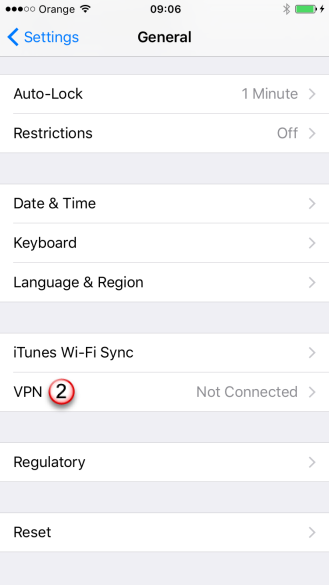

Click on "VPN" (2)

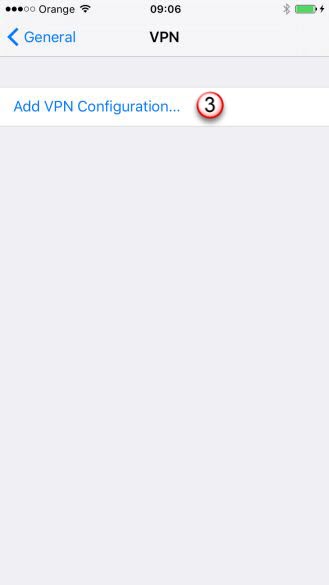

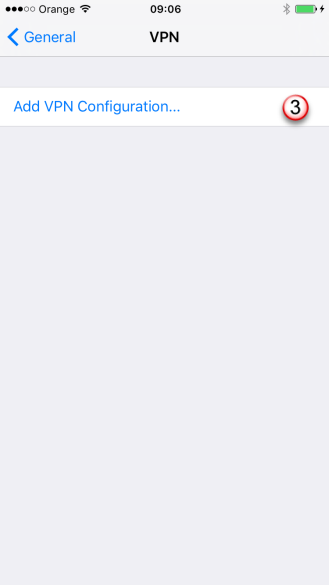

Select "Add VPN Configuration" (3)

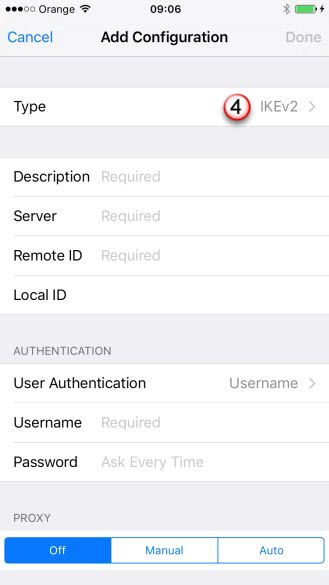

Choose type of VPN connection, click "Type" (4)

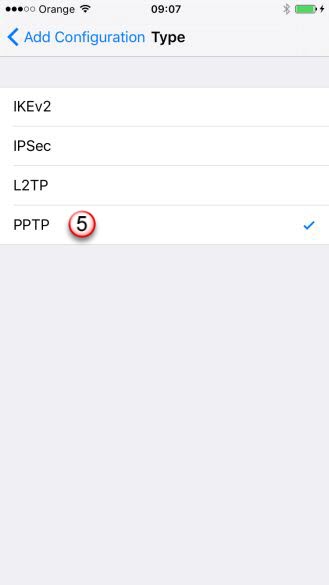

and then, select "PPTP" (5)

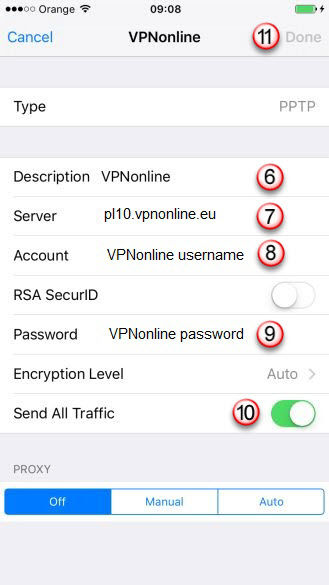

Fill in the fields below:
"Description" (6) - Type, connection name. For example: VPNonline PPTP
"Server" (7) - Type the name of one of our VPN server
In the customer panel you will find the available vpn servers: https://portal.vpnonline.pl
"Account" (8) - Type your VPN User Name
"Password" (9) - Type your VPN Password
Select an option "Send All Traffic" (10)
Save the settings by clicking on the "Done" (11)

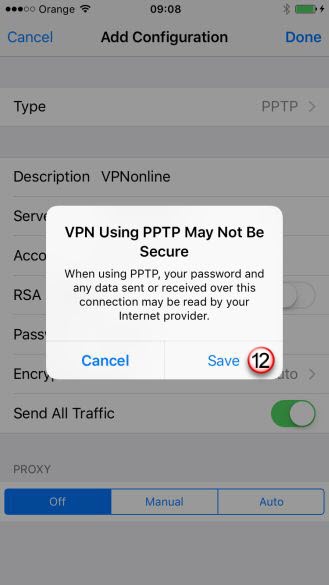

Click "Save" (12), VPN using PPTP May Not Be Secure

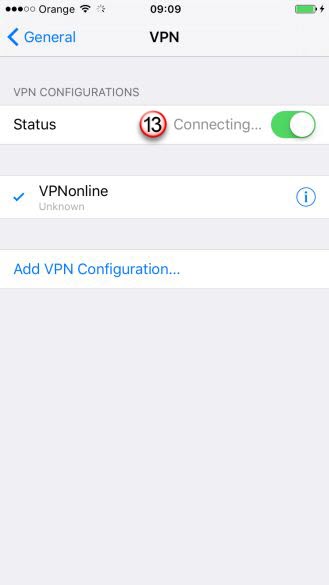

To establish VPN connection, click on "VPN" (13) button

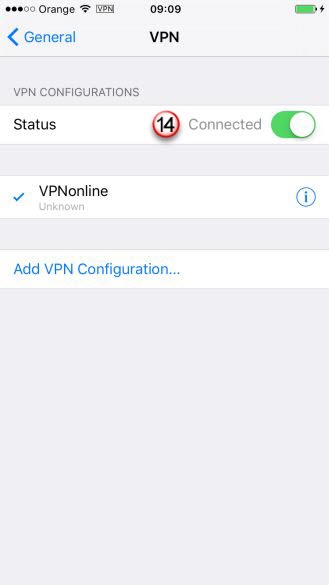

After a successful established connection, the status will change to "Connected" (14)
I the first step, download OpenVPN applicationa and OpenVPN configuration files from: Downloads
Then send by email files *.ovpn as an attachment to your mailbox configured on the iPhone

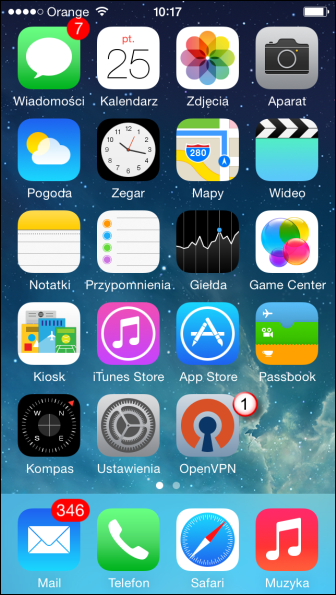

After installing OpenVPN client, we will find new icon OpenVPN (1)
Open your mail by clicking on the Mail icon and go to the message with the attached configuration files

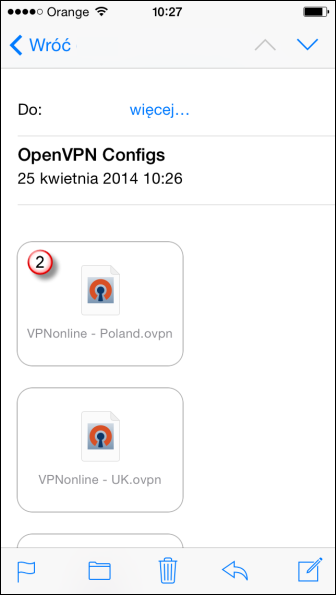

Click on the selected file (2) to import it to OpenVPN client

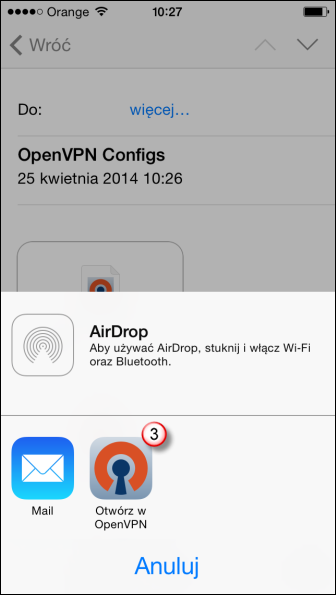

Then, choose "Open in OpenVPN (3)"

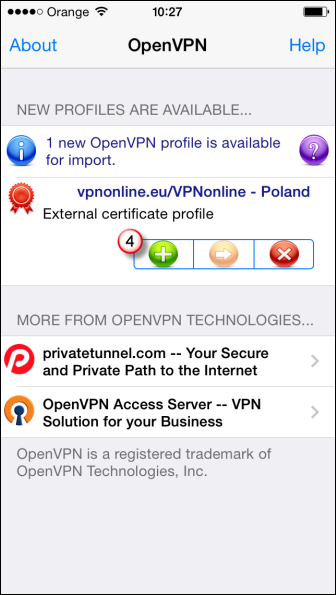

The imported file *.ovpn is available in the "NEW PROFILES ARE AVAILABLE..." section
Add it, by clicking on "+" (4)

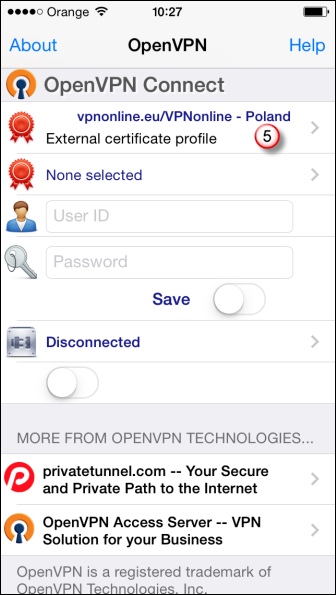

After added the configuration file *.ovpn, we can change its name by clicking on "Profile" (5)

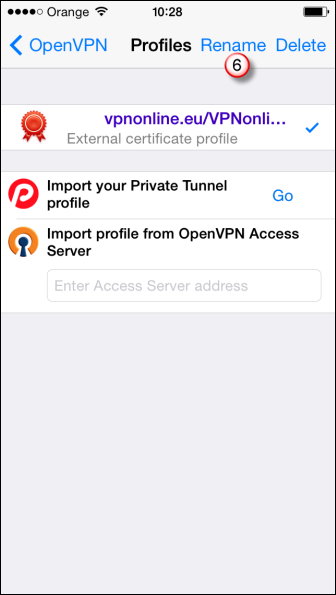

Click "Rename" (6)

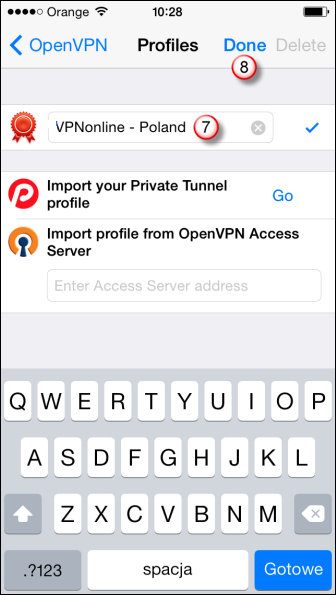

Type name for the profile, for example: VPNonline - Poland (7) and confirm it by clicking "Done" (8)
To import another configuration files *.ovpn, repeat the procedure from step "2"

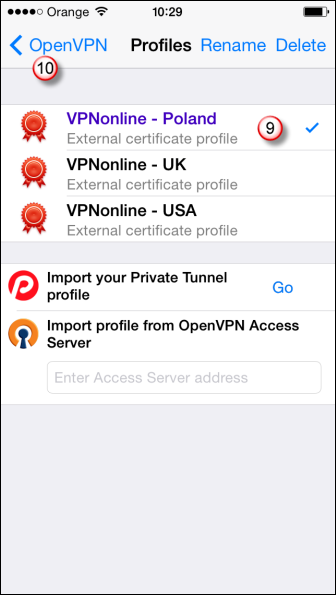

After added all the configuration files, click on one of them, eg VPNonline - Poland
(on the right, we will see the selection) (9)
Then, click on "OpenVPN" (10)
We chose profile VPNonline - Poland to connection

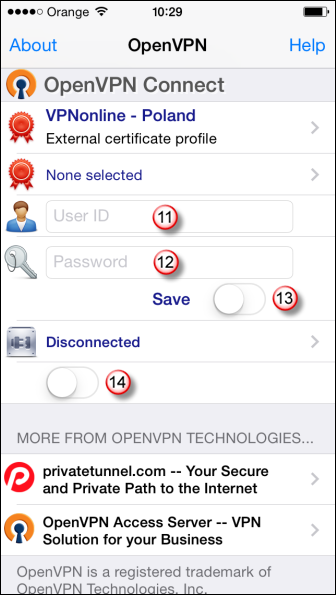

In the "User ID" (11) field, type your user name
In the "Password" (12) field, type your password
Save the entered data by clicking on "Save" (13)
Click "Connection" (14)

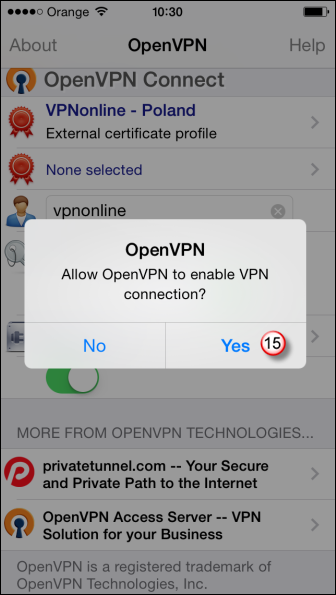

Allow OpenVPN client to establish a VPN connection, click "Yes" (15)
VPN connection is established, status changes to "Connected"
On the top bar, you will see the new icon [VPN]
