VPN PPTP client configuration โ€“ Router OpenWRT

VPN PPTP client configuration โ€“ Router OpenWRT

In the first step, login to your router, launch a browser and enter the default IP address of the router: http://192.168.1.1

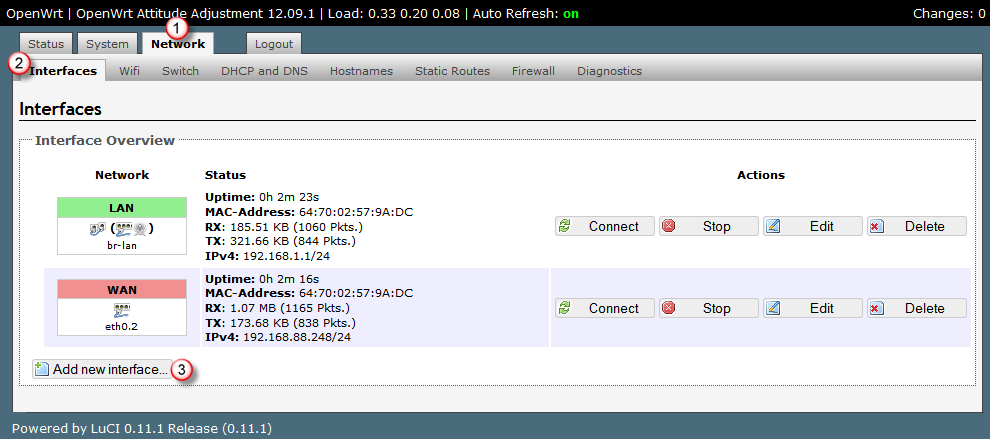

Go to "Network" (1) and choose "Interfaces" (2) tab

Add new interface by clicking "Add new interface..." (3)

Gargoyle

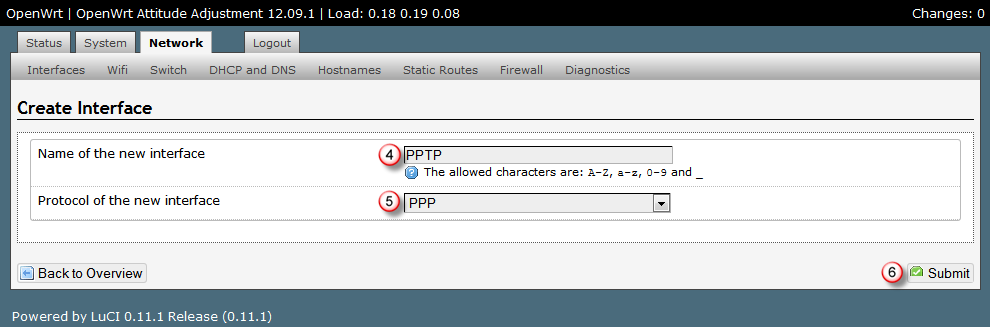

In the "Name of the new interface" field, type any name - "PPTP" (4) for example

In the "Protocol of the new interface" (5) field, choose "PPP"

To save settings, click "Submit" (6)

Gargoyle

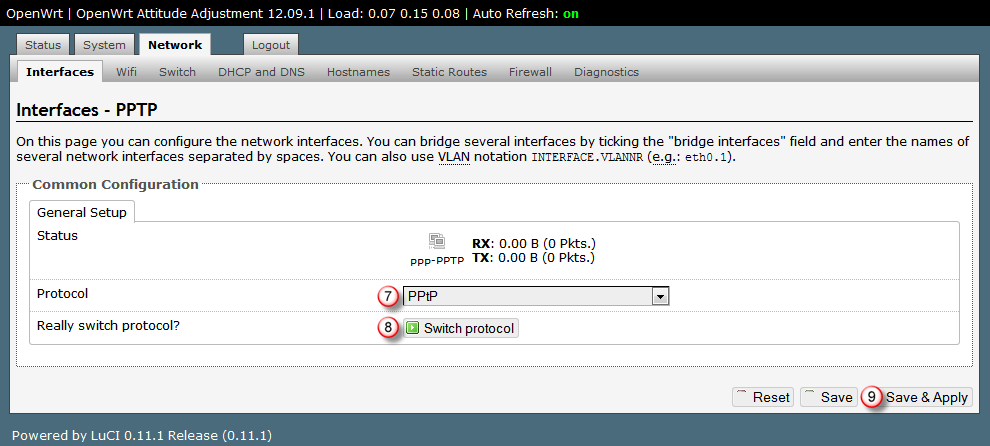

In the "Protocol" field, choose "PPTP" (7)

In the "Really switch protocol" field, choose "Switch protocol" (8)

To save settings, click "Save & Apply" (9)

Gargoyle

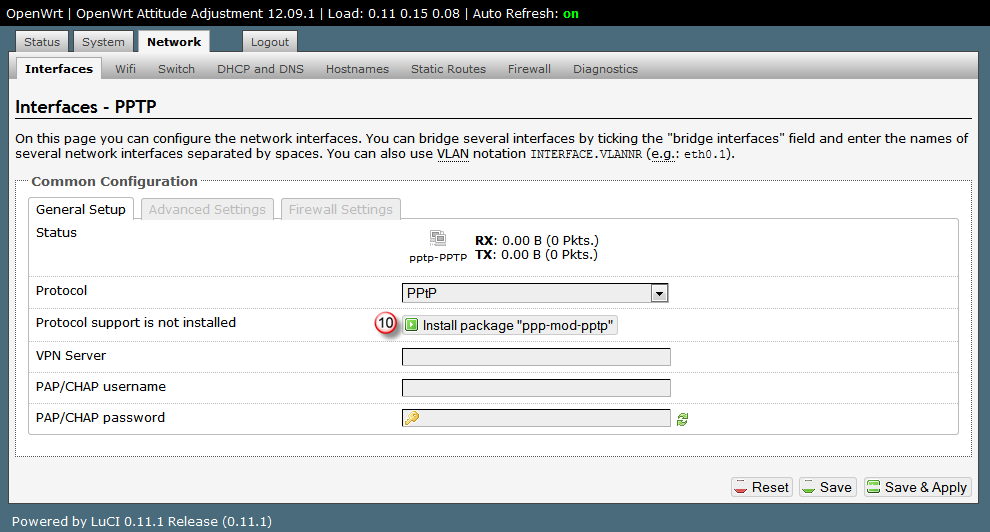

pptp-mod package is not installed by default, install it by clicking - Install package "ppp-mod-pptp" (10)

Gargoyle

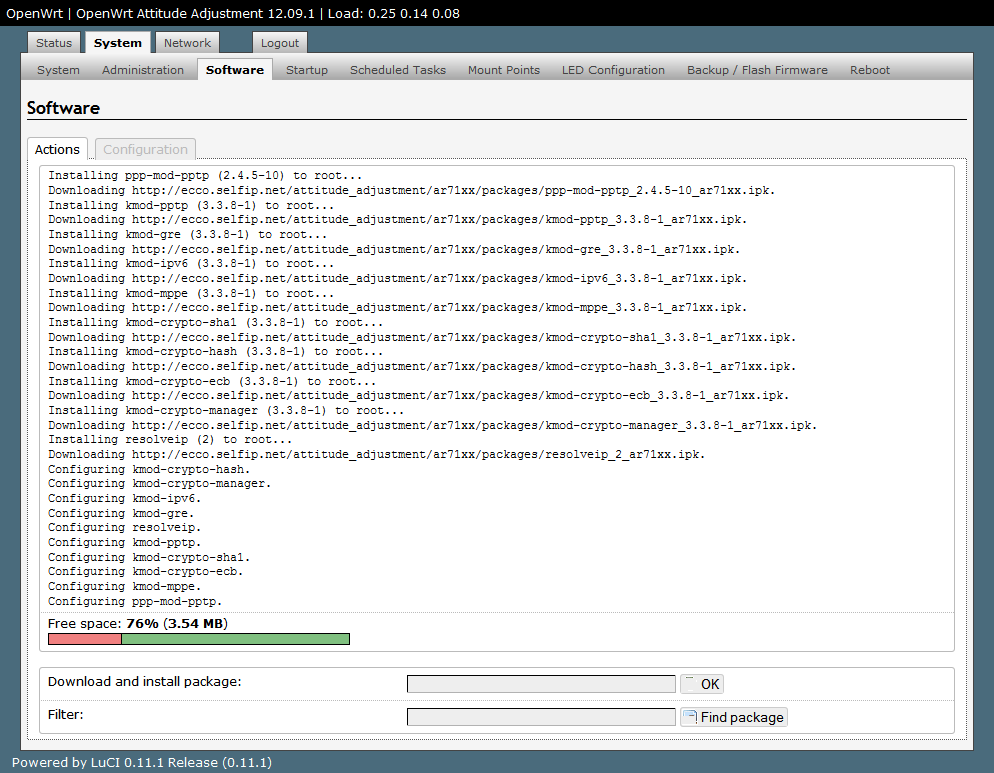

Package will be installed

Gargoyle

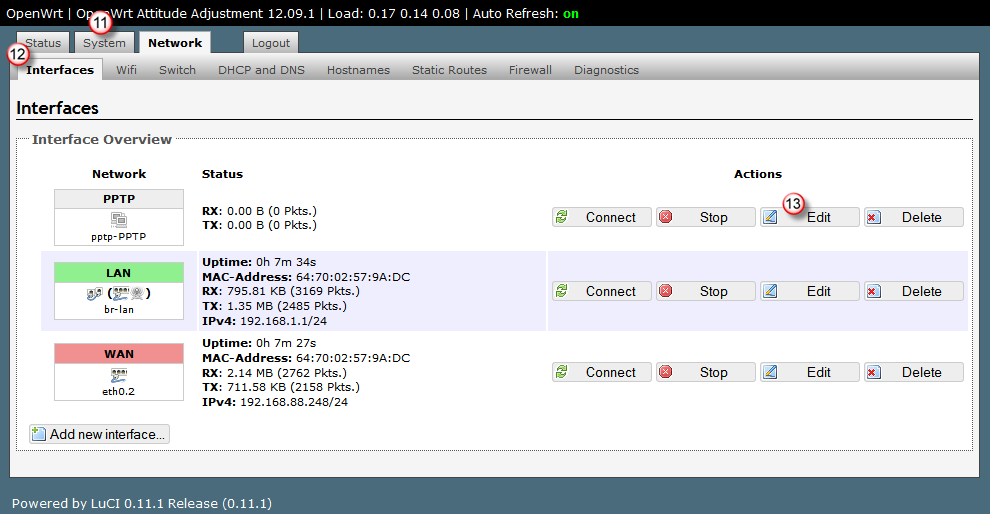

After installation, click "System" (11), next "Interfaces" (12) tab and edit the settings by clicking on the PPTP interface "Edit" (13)

Gargoyle

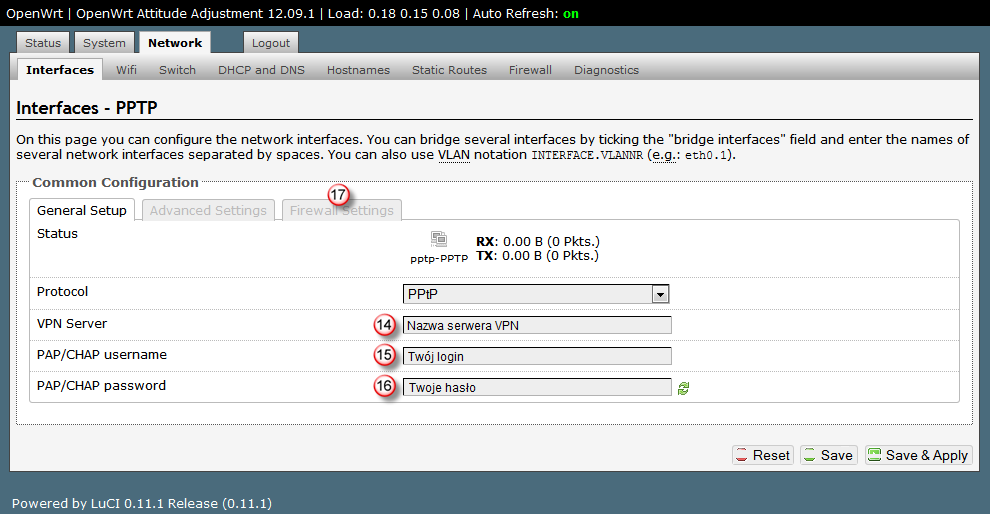

In the "VPN Server" (14) field, type the name of one of the VPNonline server

In the customer panel you will find the available vpn server: https://portal.vpnonline.pl

In the "PAP/CHAP username" (15) field, type your User Name

In the " PAP/CHAP password" (16) field, type your password

Go to "Firewall Settings" (17) tab

Gargoyle

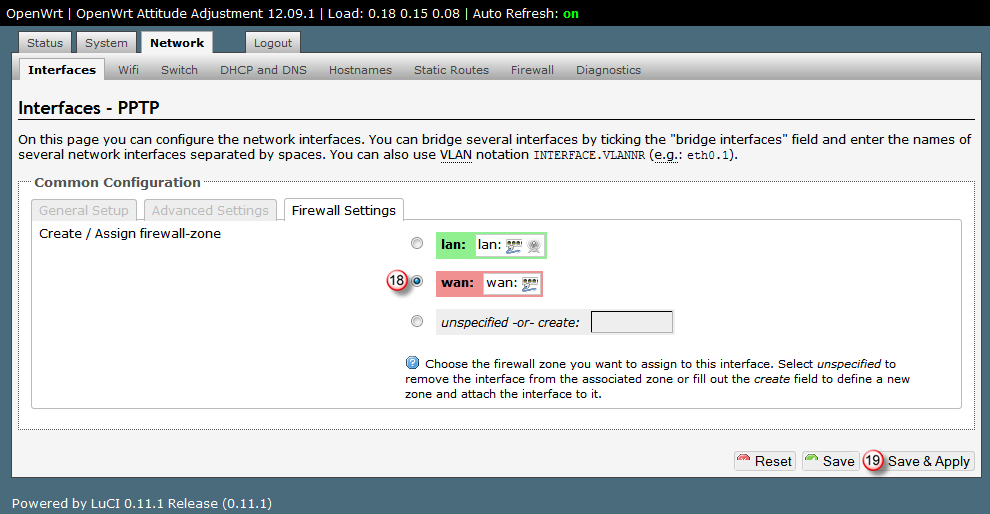

In the "Assign firewall-zone" section, select "WAN" (18)

To save settings , click"Save & Apply" (19)

Gargoyle

After the changes, restart your router

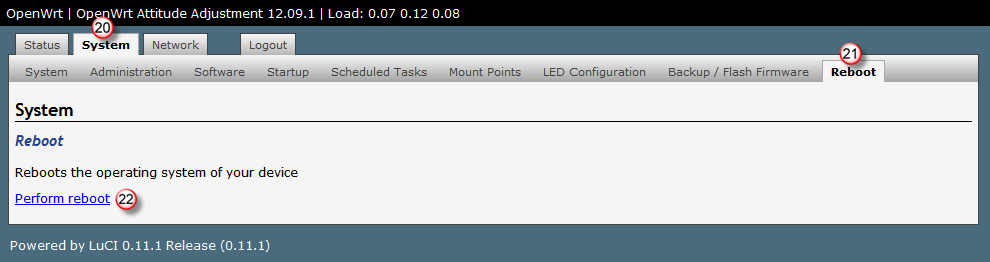

Go to "System" (20) tab, next "Reboot" (21) tab and choose "Perform reboot" (22)

Gargoyle

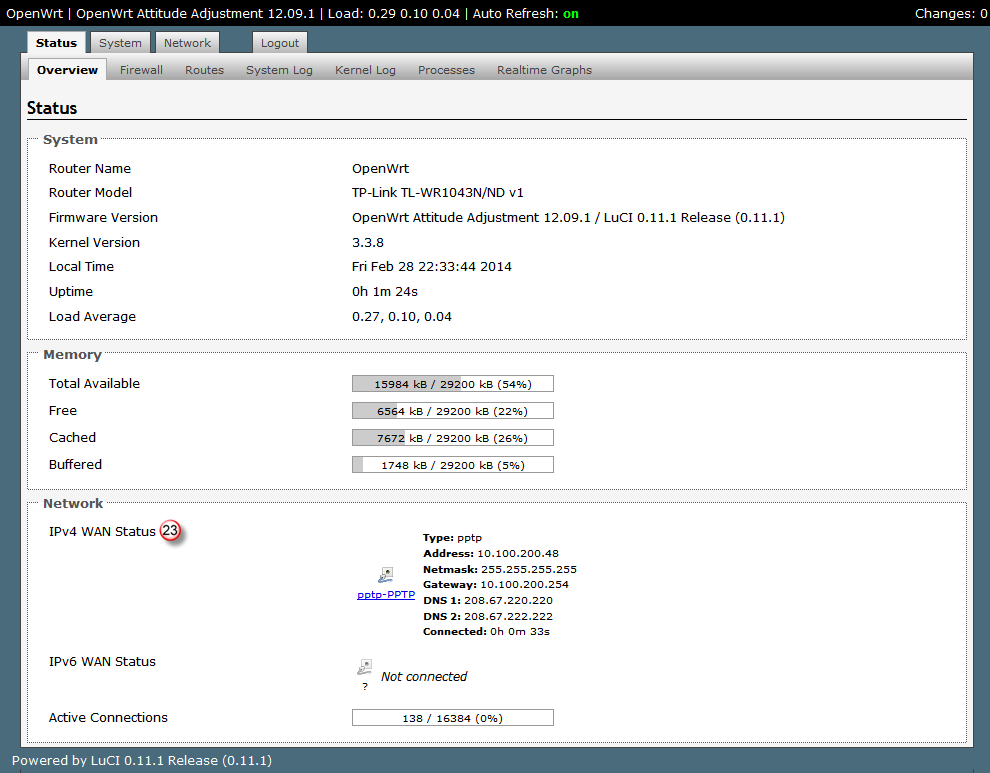

You can check the connection status in the "IPv4 WAN Status" (23) section
